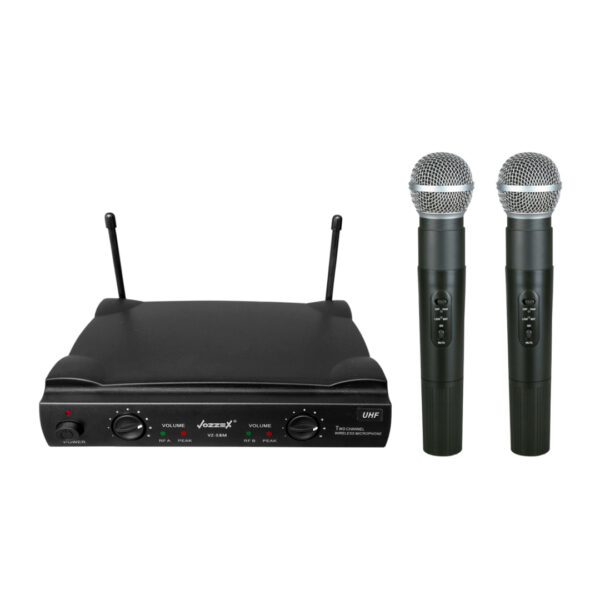

VZ-58M MICROFONO INALAMBRICO DOBLE D/MANO UHF “VOZZEX”

Descripción

VZ-58M MICROFONO INALAMBRICO DOBLE D/MANO UHF “VOZZEX”

TECHNICAL PARAMETERS

• Frequency range: VHF 740.0 – 865.6MHz
• Frequency stability: ±0.003%
• Audio dynamic range: <105dB
• T.H.D: <0,5%
• Frequency response: 40Hz – 18KHz
• Output plug: XLR balance 1/4″ unbalance plug
• Output voltage: 1/4″: 0-500mV
• XLR: 0 – 500mV
• Cover range: 60m
• Operation temperature: -10°C – +50°C

Receiver

• Rated power: 3W
• S/N: >103dB (1KHz-A)
• mirror frequency rejection: >110dB
• spurious reduction: >90dB
• RF sensivity: -105dBm
• Channels: dual channels
• Power voltage: DC12-18V, power adapter
• Packing: Brown Box + Plastic Box
• Carton size: 5PSC/CTN  53.5 x 45.5 x 33.5 cm

Transmitter specification

• Transmitter power: ≤10mW
• Modulation mode: FM
• Max. modulation frequency: ±25KHz
• Power: 9V
• Battery Life: 8 hours
